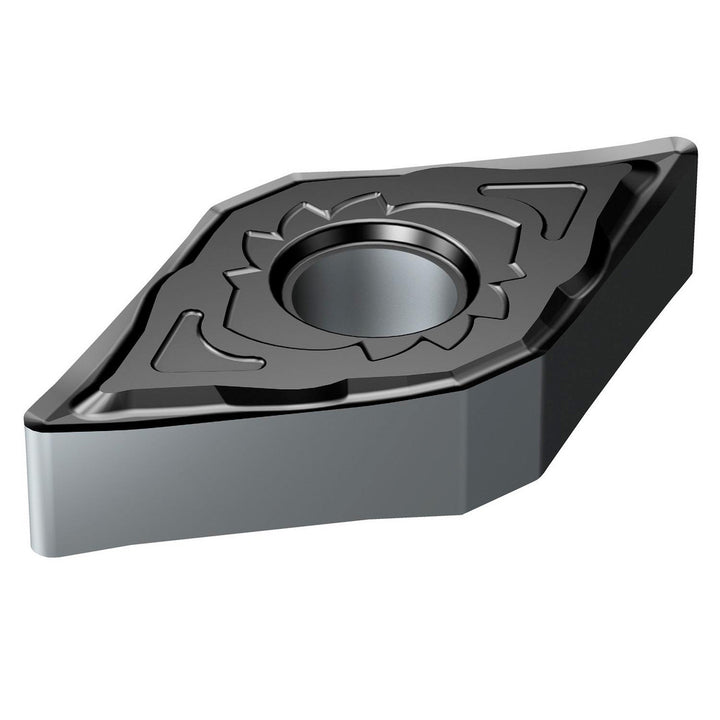

DNGG150408-SGF 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5909000

Sandvik Coromant

DNGG150408-SGF 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5909000

MFR# 5909000ISO/ANSI# DNGG150408Series T-Max P

$28.31List $36.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
Grade1105
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5909000 is a DNGG150408-SGF 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeDNGG432
Ansi size code432
Chip breakerSGF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.2520
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNGG
Insert thickness in3/16
Iso codeDNGG150408-SGF 1105
Iso insert codeDNGG150408
Iso size code150408
Length range0.0000 - 0.3000
Manufacturer grade1105
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Side clearanceNegative
Tolerance codeG
Wiper edgeNo
