Sandvik Coromant

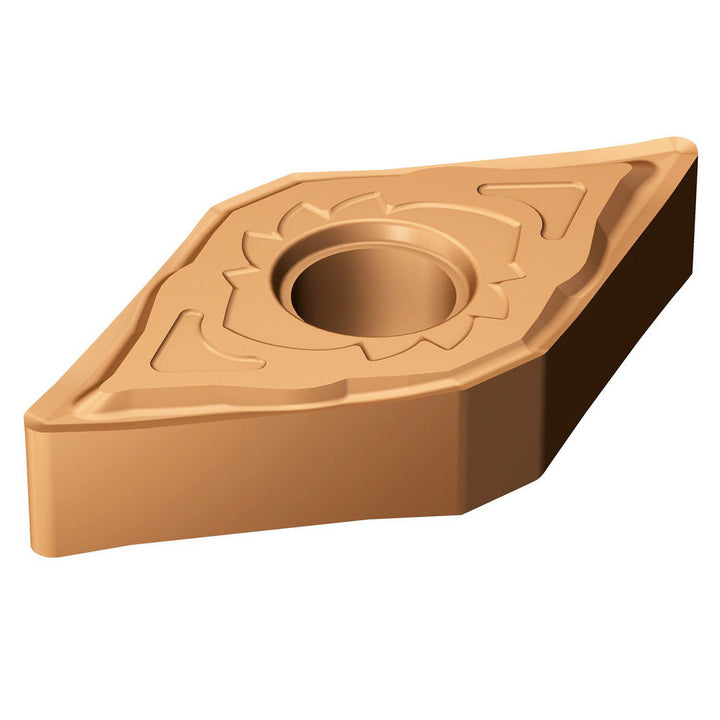

DNGG150408SGF1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5909002
MFR# 5909002ISO/ANSI# DNGG150408Series T-Max P
$28.81List $36.30
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Sold in multiples of 10 — minimum order 10
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5909002 is a DNGG150408SGF1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for stainless steel.
Specifications
Ansi insert codeDNGG432
Ansi size code432
Chip breakerSGF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Hole diameter0.2032
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNGG
Insert thickness in3/16
Iso codeDNGG150408SGF1125
Iso insert codeDNGG150408
Iso size code150408
Length range0.6000 - 0.6500
Manufacturers catalog number5909002
Manufacturer grade1125
Maximum depth of cut0.2520
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Side clearanceNegative
Tolerance codeG
Wiper edgeNo
