Sandvik Coromant

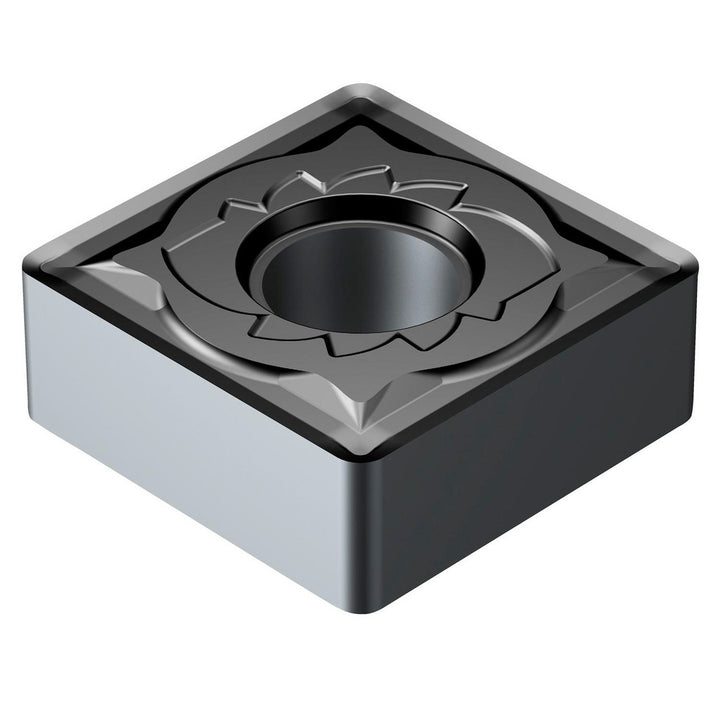

SNMG120412-SMR 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5909059
MFR# 5909059ISO/ANSI# SNMG120412-SMR 1105Series T-Max P
$19.54List $25.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5909059 is a SNMG120412-SMR 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSMR
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso codeSNMG120412-SMR 1105
Length range0.3000 - 0.4000
Manufacturer grade1105
Number of cutting edges8
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
