Sandvik Coromant

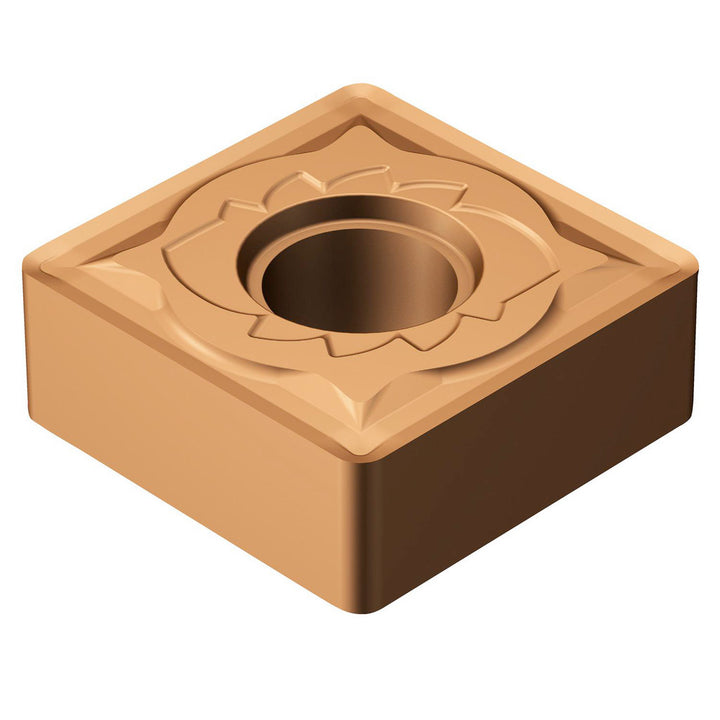

SNMG190616-SMR 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5909074
MFR# 5909074ISO/ANSI# SNMG190616-SMR 1115Series T-Max P
$52.45List $66.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeSquare
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5909074 is a SNMG190616-SMR 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSMR
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Hole diameter0.3120
Included angle55
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code644
Insert styleDNMG
Insert thickness in1/4
Iso codeSNMG190616-SMR 1115
Length range0.5000 - 0.6000
Manufacturer grade1115
Number of cutting edges8
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
