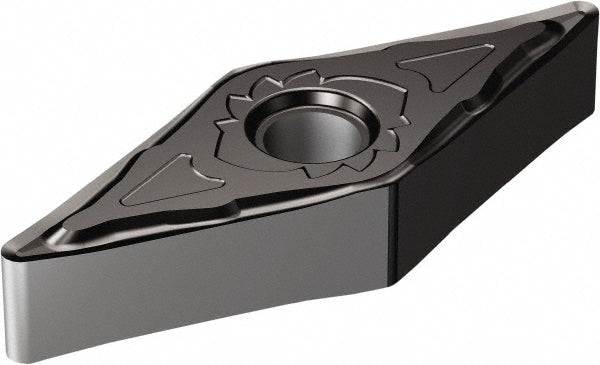

VNGG160404SGFS05F Carbide Insert, Grade S05F, TiCN - Sandvik Coromant 5909082
MFR# 5909082ISO/ANSI# VNGG160404Series T-Max P
$37.58List $48.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeS05F
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5909082 is a VNGG160404SGFS05F carbide indexable insert, grade S05F, TiCN coated.
Specifications
Ansi insert codeVNGG331
Ansi size code331
Chip breakerSGF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6539
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNGG
Insert thickness in3/16
Iso codeVNGG160404SGFS05F
Iso insert codeVNGG160404
Iso size code160404
Length range0.6500 - 0.7000
Manufacturers catalog number5909082
Manufacturer gradeS05F
Maximum depth of cut0.0945
Relief angle0
Side clearanceNegative
Tolerance codeG
