Sandvik Coromant

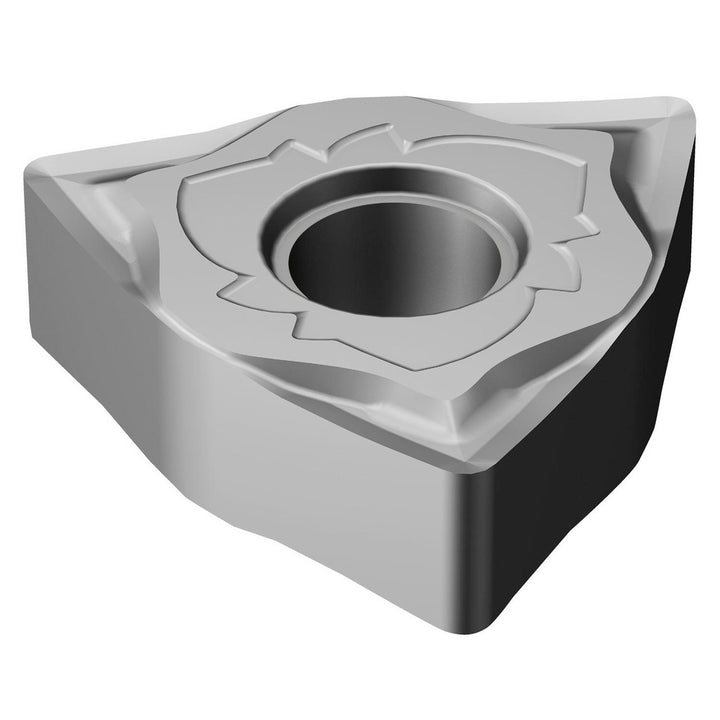

WNGG080404SGFH13A Carbide Insert, Grade H13A - Sandvik Coromant 5909100
MFR# 5909100ISO/ANSI# WNGG080402Series T-Max P
$17.85List $22.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5909100 is a WNGG080404SGFH13A carbide indexable insert, grade H13A. Suited for stainless steel.
Specifications
Ansi insert codeWNGG432
Ansi size code432
Chip breakerSGF
Chip breaker operationFinishing
Clearance codeN
Corner radius in1/64
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and T
Hole diameter0.2032
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3421
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNGG
Insert thickness in3/16
Iso codeWNGG080404SGFH13A
Iso insert codeWNGG080402
Iso size code080402
Length range0.3000 - 0.4000
Manufacturers catalog number5909100
Manufacturer gradeH13A
Maximum depth of cut0.1260
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Side clearanceNegative
Tolerance codeG
Wiper edgeNo
