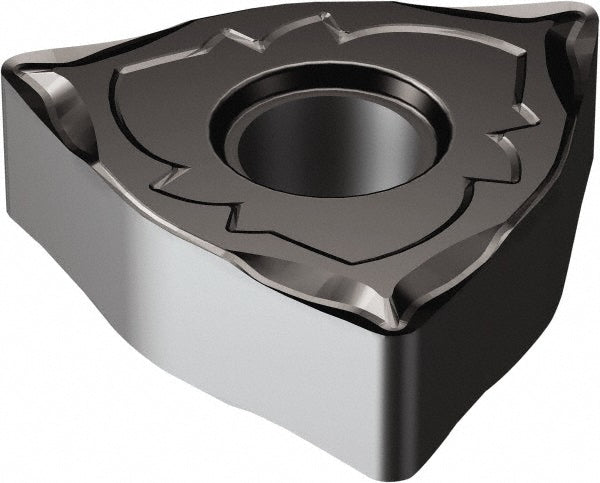

WNMG 08 04 04-SF 1105 Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 5909106

Sandvik Coromant

WNMG 08 04 04-SF 1105 Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 5909106

MFR# 5909106ISO/ANSI# WNMG080404Series T-Max P

$21.35List $27.38 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
Grade1105
MaterialCarbide
CoatingTiAlN2

Description

The Sandvik Coromant 5909106 is a WNMG 08 04 04-SF 1105 carbide indexable insert, grade 1105, TiAlN2 coated. Suited for stainless steel.

Specifications

Ansi insert codeWNMG431
Ansi size code431
Chip breakerSF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN2
Coating processPVD
Corner radius in1/64
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance
Hole diameter0.2032
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3421
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 04-SF 1105
Iso insert codeWNMG080404
Iso size code080404
Length range0.3000 - 0.4000
Manufacturers catalog number5909106
Manufacturer grade1105
Maximum depth of cut0.1260
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
