Sandvik Coromant

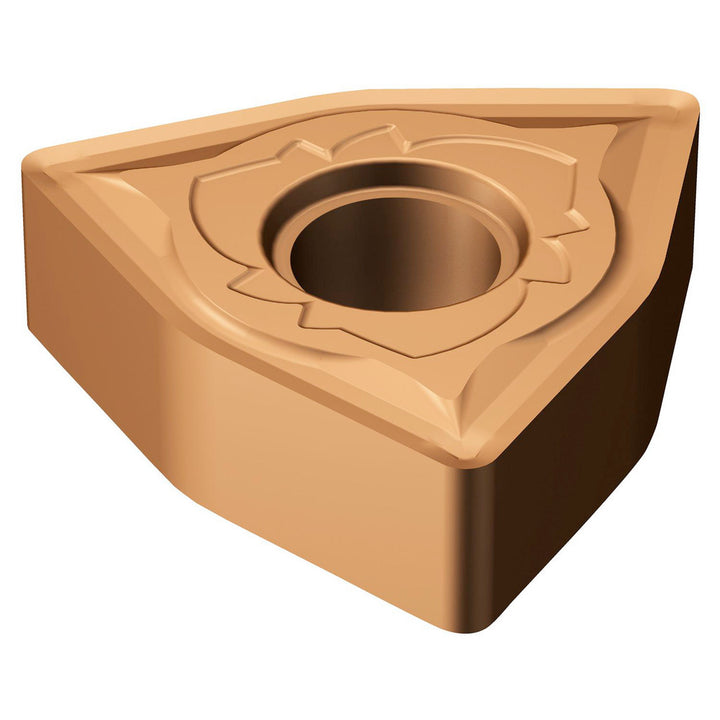

WNMG080412SMR1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5909115
MFR# 5909115ISO/ANSI# WNMG080412SMR1115Series T-Max P
$26.05List $32.83
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5909115 is a WNMG080412SMR1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSMR
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.2032
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3421
Insert materialCarbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080412SMR1115
Length range0.3000 - 0.4000
Manufacturers catalog number5909115
Manufacturer grade1115
Maximum depth of cut0.1260
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
