Sandvik Coromant

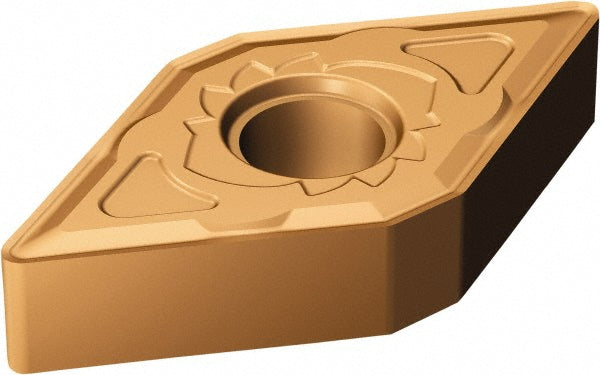

DNMG 15 04 04-SM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5915058
MFR# 5915058ISO/ANSI# DNMG 15 04 04-SM 1125Series T-Max P
$29.96List $37.75
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5915058 is a DNMG 15 04 04-SM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.2032
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 04-SM 1125
Length range0.6000 - 0.6500
Manufacturers catalog number5915058
Manufacturer grade1125
Maximum depth of cut0.2520
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
