Sandvik Coromant

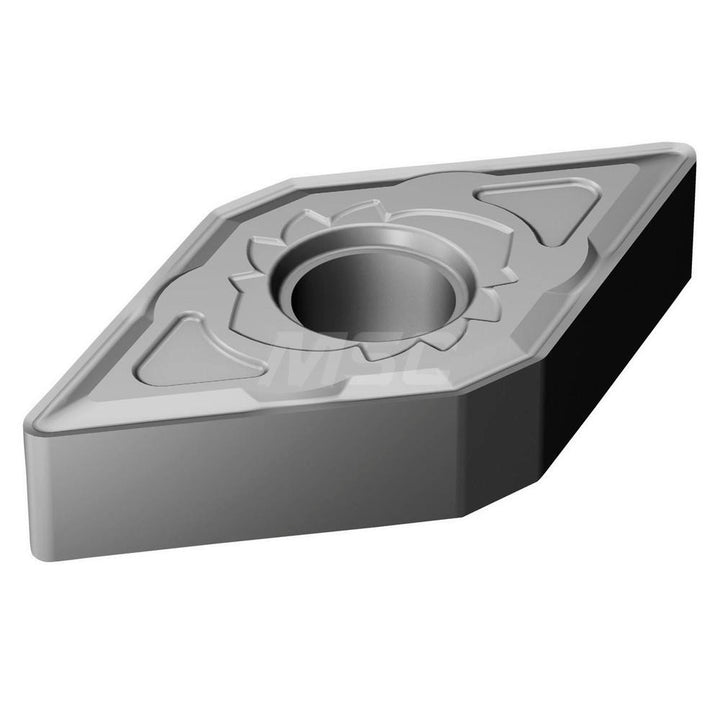

DNMG150408SMH13A Carbide Insert, Grade H13A - Sandvik Coromant 5915065
MFR# 5915065ISO/ANSI# DNMG150408Series T-Max P
$21.72List $27.38
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5915065 is a DNMG150408SMH13A carbide indexable insert, grade H13A. Suited for stainless steel.
Specifications
Ansi insert codeDNMG432
Ansi size code432
Chip breakerSM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Corner radius in1/32
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and T
Hole diameter0.2032
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408SMH13A
Iso insert codeDNMG150408
Iso size code150408
Length range0.6000 - 0.6500
Manufacturers catalog number5915065
Manufacturer gradeH13A
Maximum depth of cut0.2520
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
