Sandvik Coromant

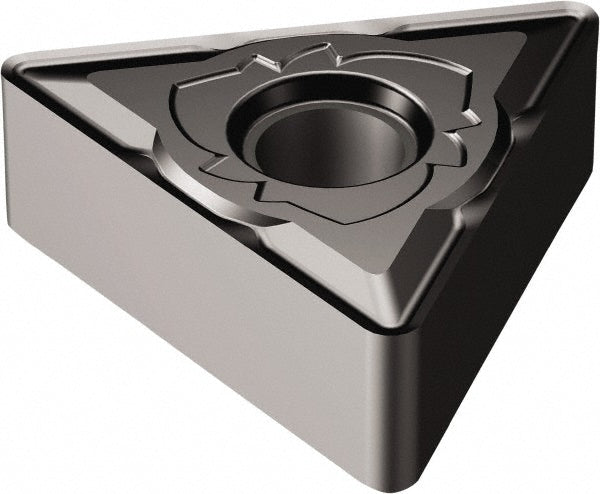

TNMG 16 04 08-SM 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5915101
MFR# 5915101ISO/ANSI# TNMG 16 04 08-SM 1105Series T-Max P
$20.83List $26.24
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5915101 is a TNMG 16 04 08-SM 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.1890
Insert materialCarbide
Insert shapeTriangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 16 04 08-SM 1105
Length range0.0000 - 0.3000
Manufacturer grade1105
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
