Sandvik Coromant

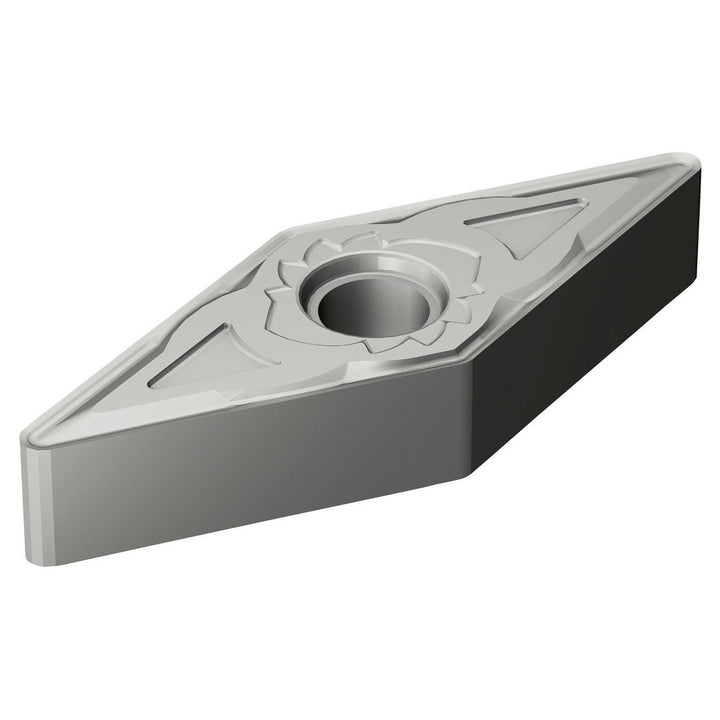

VNMG160404SMH13A Carbide Insert, Grade H13A - Sandvik Coromant 5915140
MFR# 5915140ISO/ANSI# VNMG160404SMH13ASeries T-Max P
$25.81List $33.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5915140 is a VNMG160404SMH13A carbide indexable insert, grade H13A. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeN
Corner radius in1/64
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6539
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404SMH13A
Length range0.6500 - 0.7000
Manufacturers catalog number5915140
Manufacturer gradeH13A
Maximum depth of cut0.0945
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
