Sandvik Coromant

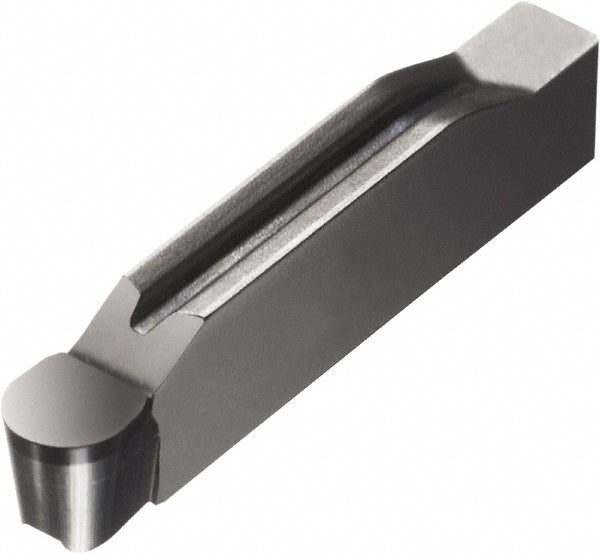

Cubic Boron Nitride Insert, Grade 7015, TiN - Sandvik Coromant 5918493
MFR# 5918493Series CoroCut 1-2
$144.83List $185.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade7015
MaterialCubic Boron Nitride
CoatingTiN
Description
The Sandvik Coromant 5918493 is a cubic boron nitride indexable insert, grade 7015, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0787
Cutting width0.1575
Insert handNeutral
Insert materialCubic Boron Nitride
Insert size0400
Insert styleN123
Manufacturers catalog number5918493
Manufacturer grade7015
Maximum depth of cut0.0256
Maximum depth of cut range0.0000 to 0.0750
Overall length0.9862
Rake angle7.00
