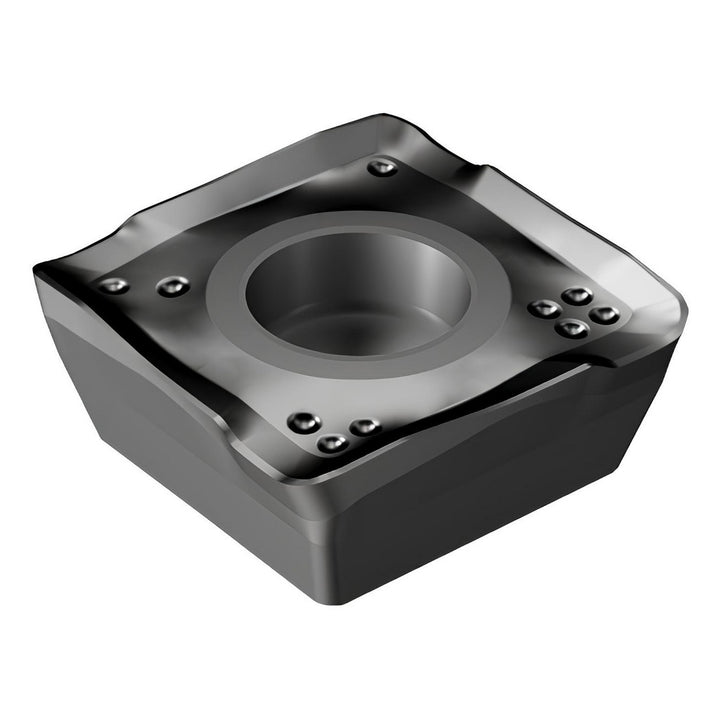

490R-140412E-MM S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5922167

Sandvik Coromant

490R-140412E-MM S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5922167

MFR# 5922167ISO/ANSI# 490R-140412E-MM S30TCat# 490R-140412E-MM S30TSeries 490

$35.88List $46.01 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeS30T
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5922167 is a 490R-140412E-MM S30T solid carbide indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi code490R-140412E-MM S30T
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibility490
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.5433
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code140412
Insert style490
Iso code490R-140412E-MM S30T
Length0.5433
Length range0.5000 to 0.6000
Manufacturers catalog number490R-140412E-MM S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle26
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1535
Thickness range0.1500 to 0.1750
Width0.5433
