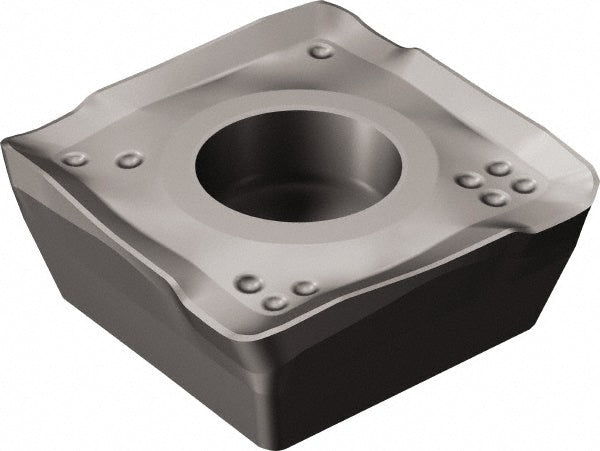

490R-08T308E-ML H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5922172

Sandvik Coromant

490R-08T308E-ML H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5922172

MFR# 5922172ISO/ANSI# 490R-08T308E-ML H13ACat# 490R-08T308E-ML H13ASeries 490

$27.28List $34.99 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeH13A
MaterialSolid Carbide

Description

The Sandvik Coromant 5922172 is a 490R-08T308E-ML H13A solid carbide indexable insert, grade H13A. Suited for non-ferrous metal, superalloys & titanium.

Specifications

Ansi code490R-08T308E-ML H13A
Chip breakerML
Coating processUncoated
Corner radius in1/32
Cutter series compatibility490
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.3346
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size08
Insert size code08T308
Insert style490
Iso code490R-08T308E-ML H13A
Length0.3346
Length range0.3200 to 0.4000
Manufacturers catalog number490R-08T308E-ML H13A
Manufacturer gradeH13A
Material applicationNon-Ferrous Metal; Superalloys & Titanium
Material gradeK20; N15; S20
Maximum depth of cut0.2165
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle32
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1299
Thickness range0.1250 to 0.1500
Width0.3346
