Sandvik Coromant

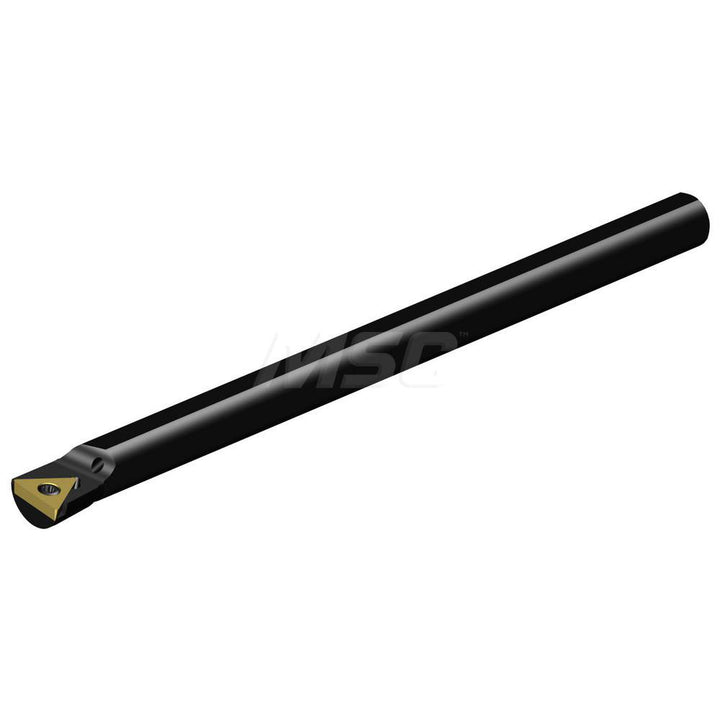

Indexable Boring - Sandvik Coromant 5937342
MFR# 5937342Cat# A06M-STFCR 2Series CoroTurn 107
$214.90List $221.40
Save 2%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5937342 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge6.0000
Center to cutting edge in1/4
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityTCMT 21.51
Insert holding methodScrew Clamping
Insert inscribed circle in1/4
Insert thickness in3/32
Lead angle0.00
Manufacturers catalog numberA06M-STFCR 2
Minimum bore diameter in1/2
Minimum bore diameter using diamond insert cartridge0.5000
Minimum bore diameter using triangle insert cartridge0.5000
Multi use applicationBoring; Turning
Multi use toolYes
Neck diameter in3/8
Number of inserts used on toolholder1
Overall length in6
RakeNeutral
Rake angle0.00
Shank diameter in3/8
Toolholder styleA-STFC
Tool materialSteel
