Sandvik Coromant
TLTK-2L 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5954571
MFR# 5954571ISO/ANSI# TLTK-2L 1125Series Top Lok
$35.55List $45.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialCarbide
CoatingTiAlN
Description

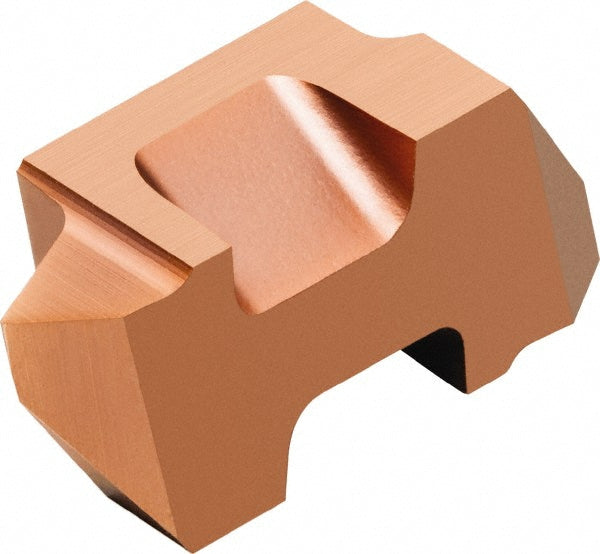

The Sandvik Coromant 5954571 is a TLTK-2L 1125 carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0030
External pitch0.60-2.00 mm; 12-44 TPI
Finish coatingTiAlN
Included angle60degree
Insert handLeft Hand
Insert materialCarbide
Insert size2
Insert styleTLTK
Internal pitch0.60 to 2.00 mm; 12 to 44 TPI
Iso codeTLTK-2L 1125
Manufacturer grade1125
Thickness0.2190in
Thread standard60 Deg V
Thread typeInternal; External
Tip to top of insert0.2190
Width of cutting tip0.1500
