Sandvik Coromant

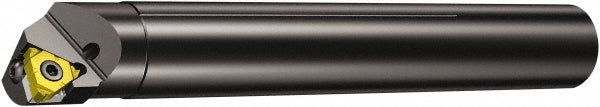

Indexable Threading Toolholders - Sandvik Coromant 5961387
MFR# 5961387Series CoroThread 266
$274.60List $286.65
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5961387 indexable threading toolholders. Series CoroThread 266.
Specifications
Center to cutting edge0.4724
Coolant throughYes
Cutting tool applicationGrooving; Threading
Hand of holderRight Hand
Head length1.0630
Insert compatibility266RL to 16AC01F080E; 266RL to 16AC01F100E; 266RL to 16AC01F120E; 266RL to 16AC01F140E; 266RL to 16AC01F160E; 266RL to 16MM01A050M; 266RL to 16MM01A075M; 266RL to 16MM01A100M; 266RL to 16MM01A125M; 266RL to 16MM01A150M; 266RL to 16MM01A175M; 266RL to 16MM
Insert holding methodScrew
Insert inscribed circle in3/8
Maximum depth of cut1.8750
Minimum bore diameter0.7874
Multi use toolYes
Neck diameter0.6250
Overall length in8
Pitch range64 to 8
Shank height (mm)15.88
Shank length6.9370
Shank width diameter (mm)15.88
Thread typeInternal
Toolholder materialSteel
Toolholder style266.RL
