Sandvik Coromant
3/16" IC Solid Carbide Insert, Grade 1144, TiAlN - Sandvik Coromant 5962707
MFR# 5962707
$21.02List $26.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/16
Grade1144
MaterialSolid Carbide
CoatingTiAlN
Description

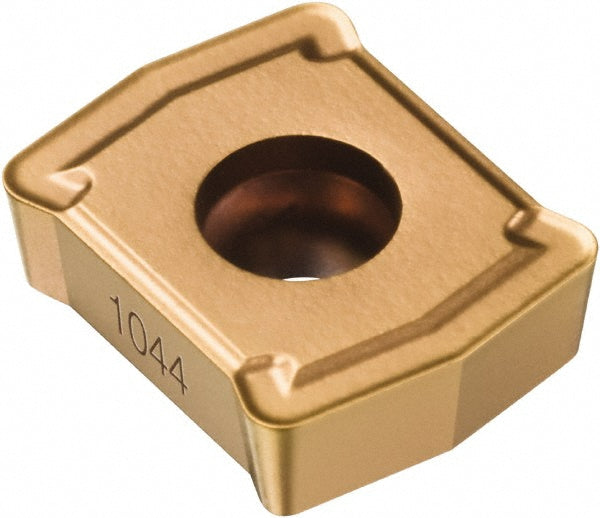

The Sandvik Coromant 5962707 is a solid carbide indexable insert, grade 1144, TiAlN coated.
Specifications
Chipbreaker53
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Cutting directionRight Hand
Hole diameter0.0984
Included angle degree7
Inscribed circle in3/16
Insert materialSolid Carbide
Insert size2
Insert style881
Manufacturer grade1144
Relief angle7
ShapeRectangle
Thickness in3/32
