Sandvik Coromant

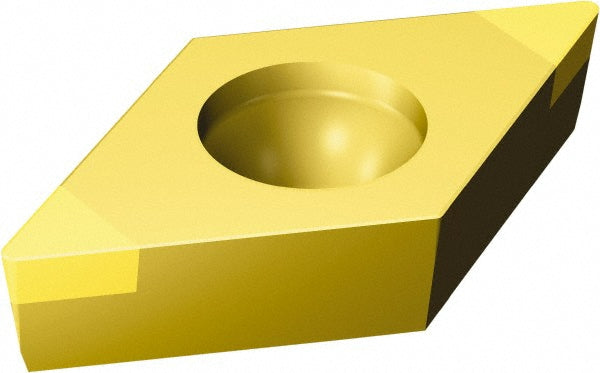

DCGW11T302T01020F 7525 Carbide Insert, Grade 7525, TiN - Sandvik Coromant 5965424
MFR# 5965424ISO/ANSI# DCGW11T302T01020F 7525
$85.06List $109.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade7525
MaterialCarbide
CoatingTiN
Description
The Sandvik Coromant 5965424 is a DCGW11T302T01020F 7525 carbide indexable insert, grade 7525, TiN coated.
Specifications
Chip breakerW
Clearance codeC
Coating finishTiN
Corner radius0.0079
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.1102
Insert materialCarbide
Insert shapeDiamond
Insert size code32.50
Insert styleDCGW
Insert thickness in5/32
Iso codeDCGW11T302T01020F 7525
Length range0.0000 - 0.3000
Manufacturer grade7525
Relief angle7
Tolerance codeG
