Sandvik Coromant
Solid Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 6071736
MFR# 6071736Series CoroCut XS
$58.10List $74.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1105
MaterialSolid Carbide
CoatingTiAlN
Description

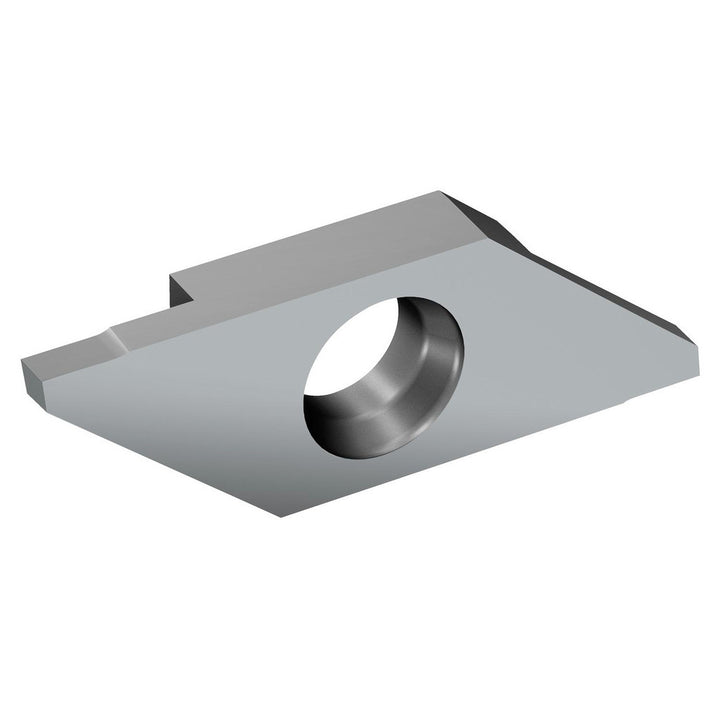

The Sandvik Coromant 6071736 is a solid carbide indexable insert, grade 1105, TiAlN coated.
Specifications
ChipbreakerMAC
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Cutting tool applicationGrooving; Parting; Turning
Cutting width0.0591
Full radiusNo
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert seat size3
Insert size code3
Insert styleMACR
Lead angle0
Lead angle directionRight Hand
Manufacturers catalog number6071736
Manufacturer grade1105
Maximum depth of cut0.2480
Relief angle6.00
Width tolerance0.0008 (Inch)
