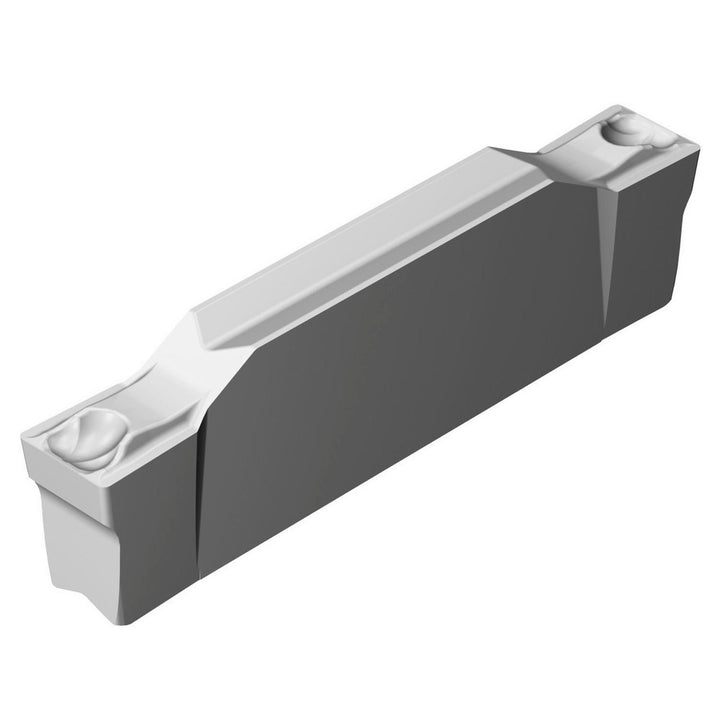

N123D201500001GF1105 Solid Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 6075354

Sandvik Coromant

N123D201500001GF1105 Solid Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 6075354

MFR# 6075354ISO/ANSI# N123D201500001GF1105Series CoroCut 1-2

$60.75List $76.57 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Grade1105
MaterialSolid Carbide
CoatingTiAlN2

Description

The Sandvik Coromant 6075354 is a N123D201500001GF1105 solid carbide indexable insert, grade 1105, TiAlN2 coated.

Specifications

Chip breakerGF
Coating finishTiAlN2
Coating processPVD
Corner radius0.0039
Cutting width0.0591
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeD
Insert sizeD2
Insert styleN123
Insert thickness0.1614
Iso codeN123D201500001GF1105
Lead angle0
Manufacturers catalog number6075354
Manufacturer grade1105
Maximum depth of cut0.5236
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Rake angle7.00
