Sandvik Coromant

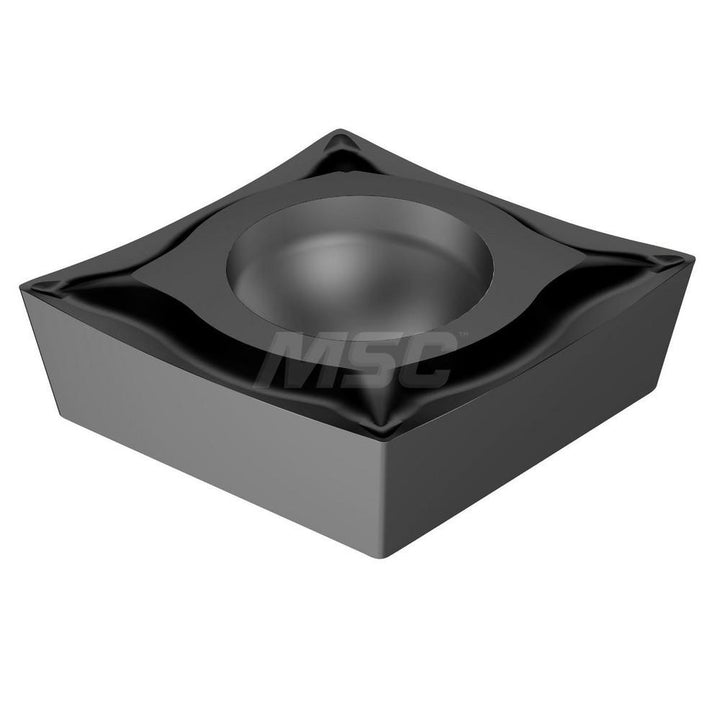

CCGT060202UM1105 Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 6075373
MFR# 6075373ISO/ANSI# CCGT060202UM1105Series CoroTurn 107
$32.74List $41.26
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN2
Description
The Sandvik Coromant 6075373 is a CCGT060202UM1105 carbide indexable insert, grade 1105, TiAlN2 coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiAlN2
Coating processPVD
Corner radius0.0079
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond
Insert size code21.5
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060202UM1105
Length range0.0000 - 0.3000
Manufacturers catalog number6075373
Manufacturer grade1105
Maximum depth of cut0.2461
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeG
Wiper edgeNo
