Sandvik Coromant

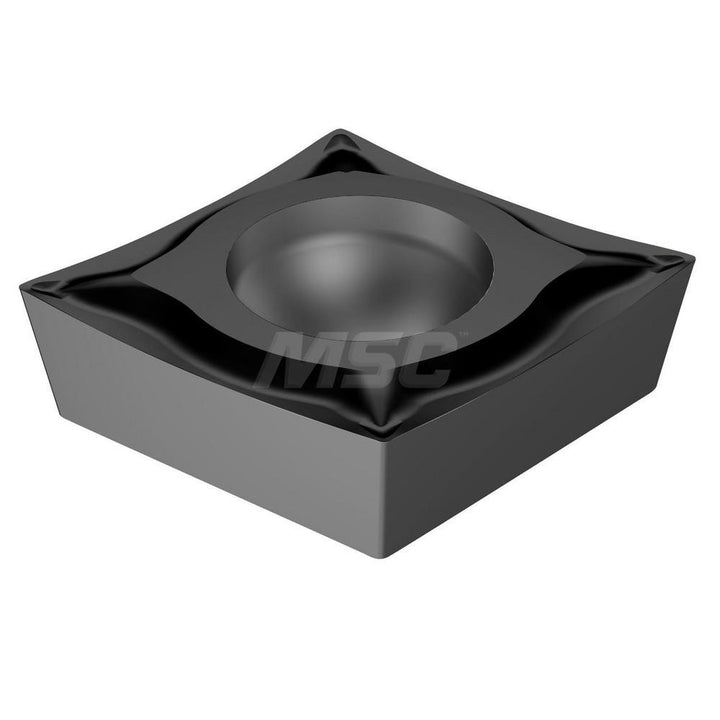

CCGT 06 02 04-UM 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 6075374
MFR# 6075374ISO/ANSI# CCGT060204Series CoroTurn 107
$32.74List $41.26
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 6075374 is a CCGT 06 02 04-UM 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for steel.
Specifications
Ansi insert codeCCGT21.51
Ansi size code21.51
Chip breakerUM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2381
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT 06 02 04-UM 1105
Iso insert codeCCGT060204
Iso size code060204
Length range0.0000 - 0.3000
Manufacturer grade1105
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Side clearancePositive
Tolerance codeG
Wiper edgeNo
