Sandvik Coromant

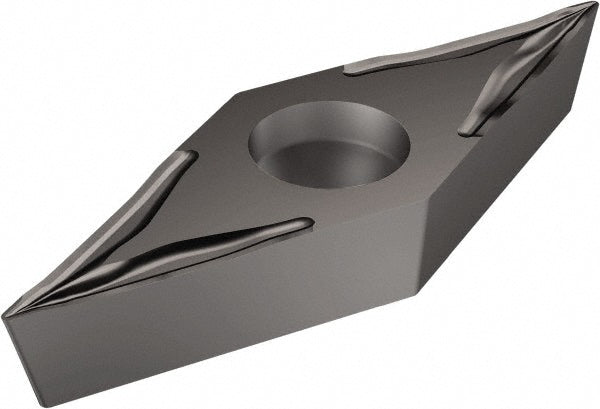

VBGT 16 04 01-UM 1105 Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 6075376
MFR# 6075376ISO/ANSI# VBGT 16 04 01-UM 1105Series CoroTurn 107
$41.47List $53.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN2
Description
The Sandvik Coromant 6075376 is a VBGT 16 04 01-UM 1105 carbide indexable insert, grade 1105, TiAlN2 coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeB
Coating finishTiAlN2
Coating processPVD
Corner radius0.0039
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6539
Insert materialCarbide
Insert shapeDiamond
Insert size code3303
Insert styleVBGT
Insert thickness in3/16
Iso codeVBGT 16 04 01-UM 1105
Length range0.6500 - 0.7000
Manufacturers catalog number6075376
Manufacturer grade1105
Maximum depth of cut0.6500
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeG
Wiper edgeNo
