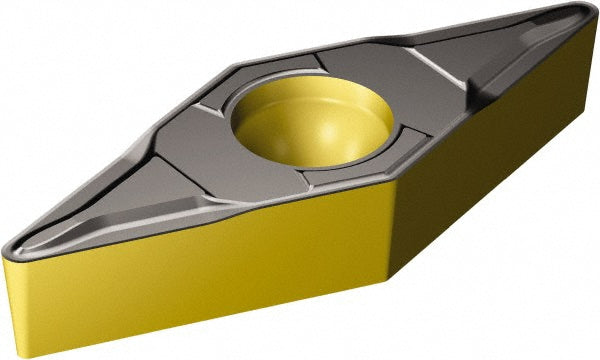

VBMT 11 03 08-MF 1105 Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 6075380

Sandvik Coromant

VBMT 11 03 08-MF 1105 Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 6075380

MFR# 6075380ISO/ANSI# VBMT 11 03 08-MF 1105Series CoroTurn 107

$24.82List $31.27 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN2

Description

The Sandvik Coromant 6075380 is a VBMT 11 03 08-MF 1105 carbide indexable insert, grade 1105, TiAlN2 coated. Suited for steel.

Specifications

Chip breakerMF
Clearance codeB
Coating finishTiAlN2
Coating processPVD
Corner radius in1/32
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4358
Insert materialCarbide
Insert shapeDiamond
Insert size code222
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT 11 03 08-MF 1105
Length range0.4000 - 0.5000
Manufacturers catalog number6075380
Manufacturer grade1105
Maximum depth of cut0.4043
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
