Sandvik Coromant

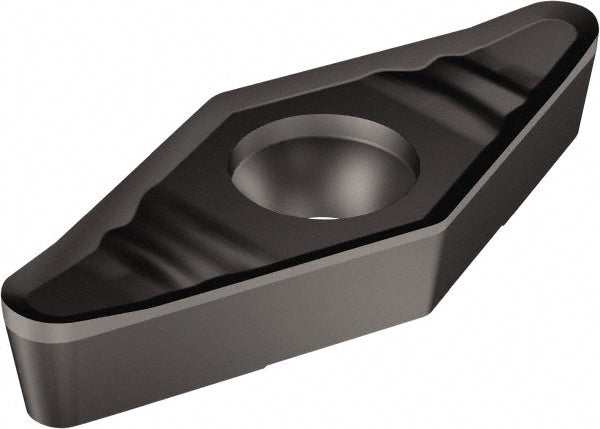

VCGX 16 04 04-AL 1105 Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 6075408
MFR# 6075408ISO/ANSI# VCGX 16 04 04-AL 1105Series CoroTurn 107
$38.19List $48.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN2
Description
The Sandvik Coromant 6075408 is a VCGX 16 04 04-AL 1105 carbide indexable insert, grade 1105, TiAlN2 coated. Suited for stainless steel.
Specifications
Chip breakerAL
Clearance codeC
Coating finishTiAlN2
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6539
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVCGX
Insert thickness in3/16
Iso codeVCGX 16 04 04-AL 1105
Length range0.6500 - 0.7000
Manufacturers catalog number6075408
Manufacturer grade1105
Maximum depth of cut0.6382
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
