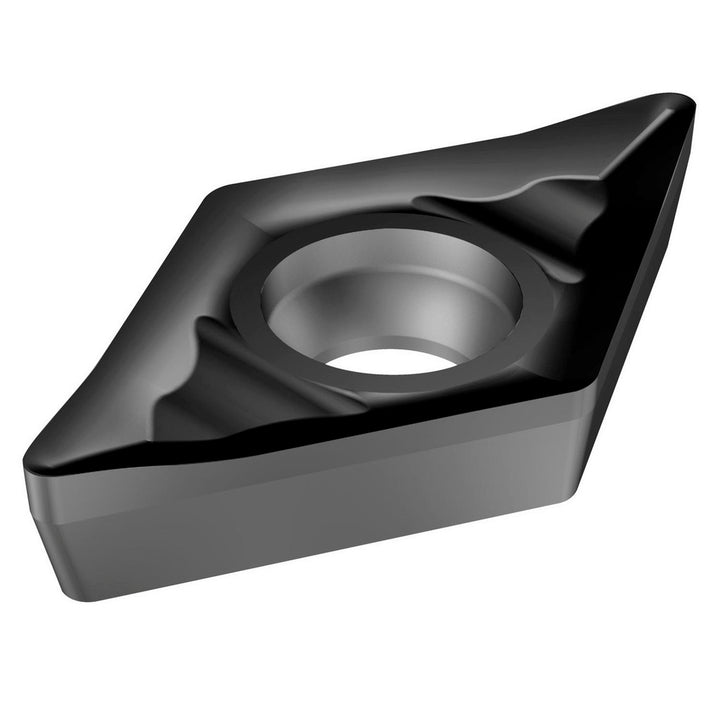

DCGX 11 T3 02-AL 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 6075418

Sandvik Coromant

DCGX 11 T3 02-AL 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 6075418

MFR# 6075418ISO/ANSI# DCGX 11 T3 02-AL 1105Series CoroTurn 107

$39.81List $50.17 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 6075418 is a DCGX 11 T3 02-AL 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for stainless steel.

Specifications

Chip breakerAL
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4499
Insert materialCarbide
Insert shapeDiamond
Insert size code32.50
Insert styleDCGX
Insert thickness in5/32
Iso codeDCGX 11 T3 02-AL 1105
Length range0.4000 - 0.5000
Manufacturer grade1105
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
