Sandvik Coromant

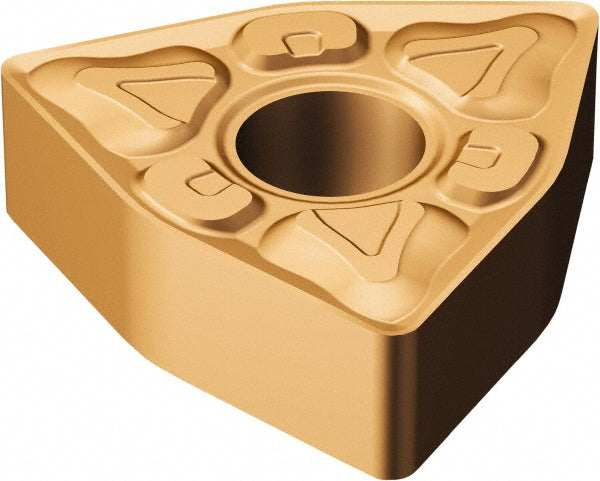

WNMG 08 04 08-XM GC15 Carbide Insert, Grade GC15, TiAlN - Sandvik Coromant 6107709
MFR# 6107709ISO/ANSI# WNMG 08 04 08-XM GC15
$21.35List $27.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeGC15
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 6107709 is a WNMG 08 04 08-XM GC15 carbide indexable insert, grade GC15, TiAlN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiAlN
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3105
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 08-XM GC15
Length range0.3000 - 0.4000
Manufacturer gradeGC15
Relief angle0
Tolerance codeM
