Sandvik Coromant

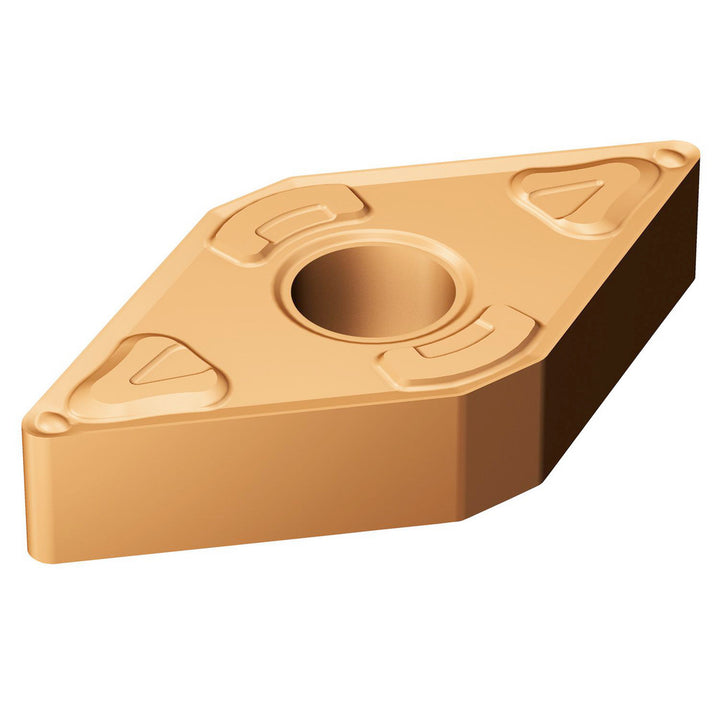

DNMG150404XFGC15 Carbide Insert, Grade GC15, TiAlN - Sandvik Coromant 6136003
MFR# 6136003ISO/ANSI# DNMG150404XFGC15Series T-Max P
$24.59List $31.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeGC15
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 6136003 is a DNMG150404XFGC15 carbide indexable insert, grade GC15, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerXF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.2032
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404XFGC15
Length range0.6000 - 0.6500
Manufacturers catalog number6136003
Manufacturer gradeGC15
Maximum depth of cut0.5945
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
