Sandvik Coromant

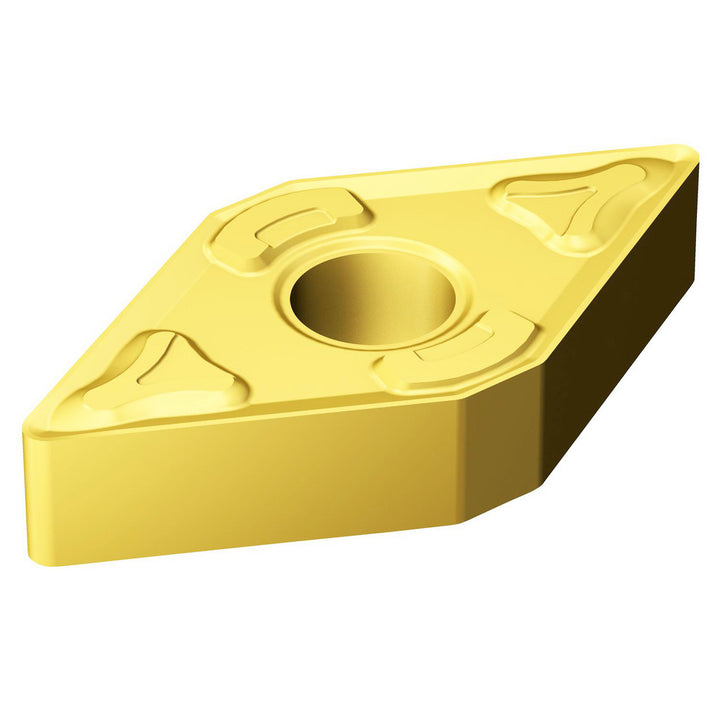

DNMG150404XMGC30 Carbide Insert, Grade GC30, TiCN - Sandvik Coromant 6136006
MFR# 6136006ISO/ANSI# DNMG150404Series T-Max P
$24.59List $31.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeGC30
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6136006 is a DNMG150404XMGC30 carbide indexable insert, grade GC30, TiCN coated. Suited for steel.
Specifications
Ansi insert codeDNMG431
Ansi size code431
Chip breakerXM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness
Hole diameter0.2032
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404XMGC30
Iso insert codeDNMG150404
Iso size code150404
Length range0.6000 - 0.6500
Manufacturers catalog number6136006
Manufacturer gradeGC30
Maximum depth of cut0.5945
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
