Sandvik Coromant

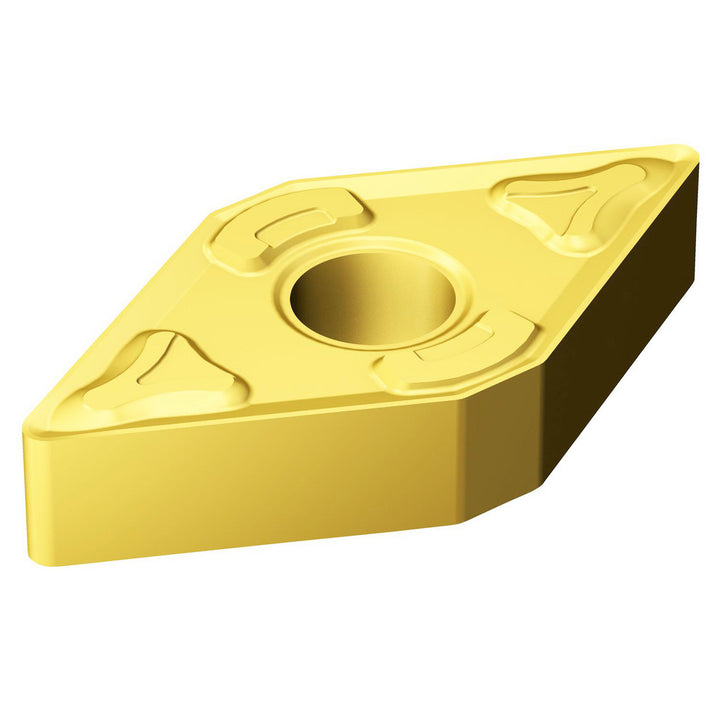

DNMG 15 04 08-XM GC30 Carbide Insert, Grade GC30, TiCN - Sandvik Coromant 6136040
MFR# 6136040ISO/ANSI# DNMG 15 04 08-XM GC30Series T-Max P
$24.59List $31.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeGC30
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6136040 is a DNMG 15 04 08-XM GC30 carbide indexable insert, grade GC30, TiCN coated. Suited for steel.
Specifications
Chip breakerXM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5789
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 08-XM GC30
Length range0.5000 - 0.6000
Manufacturer gradeGC30
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
