Sandvik Coromant

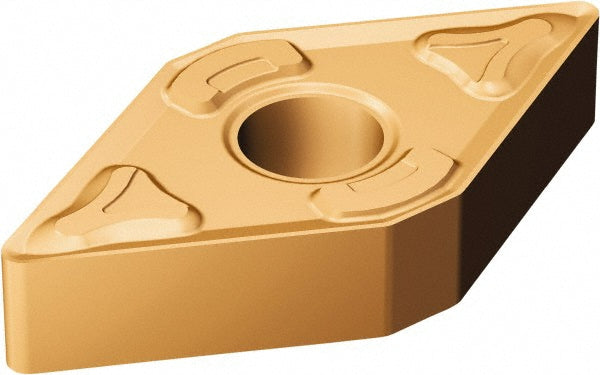

DNMG 15 06 08-XM GC15 Carbide Insert, Grade GC15, TiAlN - Sandvik Coromant 6136043
MFR# 6136043ISO/ANSI# DNMG 15 06 08-XM GC15
$26.77List $34.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeGC15
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 6136043 is a DNMG 15 06 08-XM GC15 carbide indexable insert, grade GC15, TiAlN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiAlN
Corner radius in1/32
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5789
Insert materialCarbide
Insert shapeDiamond
Insert size code442
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG 15 06 08-XM GC15
Length range0.5000 - 0.6000
Manufacturer gradeGC15
Relief angle0
Tolerance codeM
