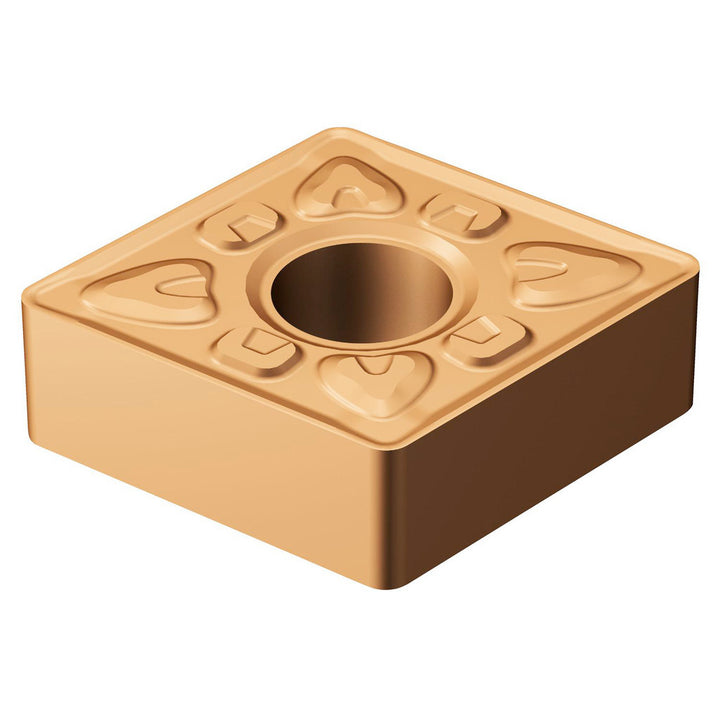

CNMG 12 04 08-XMR GC15 Carbide Insert, Grade GC15, TiAlN - Sandvik Coromant 6136049
MFR# 6136049ISO/ANSI# CNMG 12 04 08-XMR GC15Series T-Max P
$19.54List $25.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeGC15
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 6136049 is a CNMG 12 04 08-XMR GC15 carbide indexable insert, grade GC15, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerXMR
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4762
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-XMR GC15
Length range0.4000 - 0.5000
Manufacturer gradeGC15
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
