Sandvik Coromant

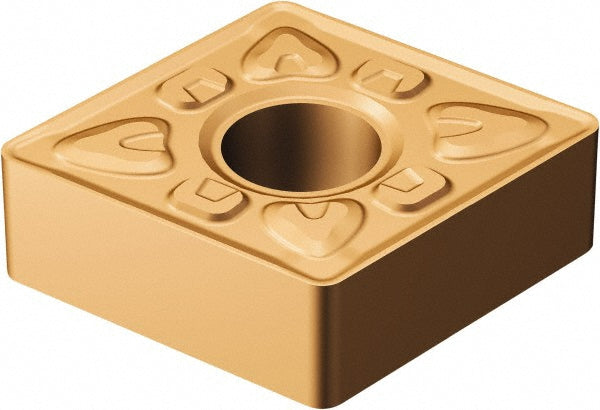

CNMG 12 04 12-XMR GC15 Carbide Insert, Grade GC15, TiAlN - Sandvik Coromant 6136051
MFR# 6136051ISO/ANSI# CNMG120412
$19.54List $25.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeGC15
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 6136051 is a CNMG 12 04 12-XMR GC15 carbide indexable insert, grade GC15, TiAlN coated.
Specifications
Ansi insert codeCNMG433
Ansi size code433
Chip breakerXMR
Clearance codeN
Coating finishTiAlN
Corner radius in3/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.4605
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 12-XMR GC15
Iso insert codeCNMG120412
Iso size code120412
Length range0.4000 - 0.5000
Manufacturer gradeGC15
Relief angle0
Side clearanceNegative
Tolerance codeM
