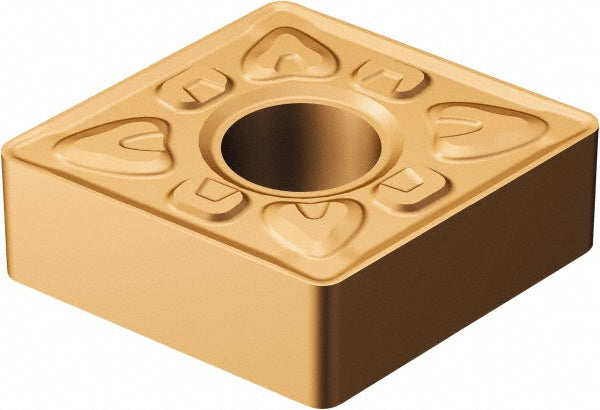

CNMG 19 06 12-XMR GC15 Carbide Insert, Grade GC15, TiAlN - Sandvik Coromant 6136059
MFR# 6136059ISO/ANSI# CNMG 19 06 12-XMR GC15
$43.03List $55.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeGC15
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 6136059 is a CNMG 19 06 12-XMR GC15 carbide indexable insert, grade GC15, TiAlN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiAlN
Corner radius in3/64
Hole diameter0.3120
Included angle80
Inscribed circle in3/4
Insert holding methodClamp; Pin
Insert length0.7143
Insert materialCarbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 19 06 12-XMR GC15
Length range0.7000 - 10.0000
Manufacturer gradeGC15
Relief angle0
Tolerance codeM
