Sandvik Coromant

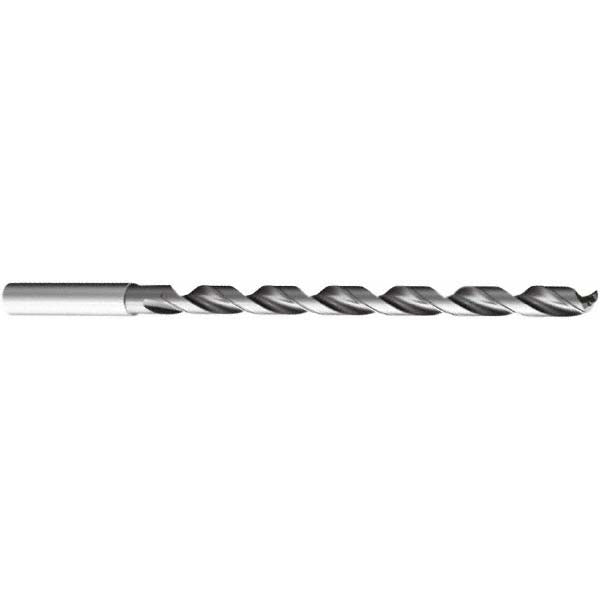

0.3438" Solid Carbide Drill Bit, TiAlN, 140° point - Sandvik Coromant 6151092
MFR# 6151092Series CoroDrill 861
$611.03List $770.04
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Sandvik Coromant 6151092 is a 0.3438" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel. Series CoroDrill 861.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7 mm
Drill bit gradeHigh Performance
Drill bit size0.3438
Drill point angle140
Drill point length0.0550
Flute by diameter ratio12xD
Flute length5.7480
Flute typeSpiral
Maximum drilling depth4.1339
Number of flutes2
Overall length7.5591
Point typeStandard
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel
Shank diameter0.3937
Shank length1.5748
Shank typeStraight-Cylindrical
Specification designationANSI; ISO
Spiral typeRegular
StandardsCOROMANT
Tool applicationDrilling
Tool materialSolid Carbide
