Sandvik Coromant

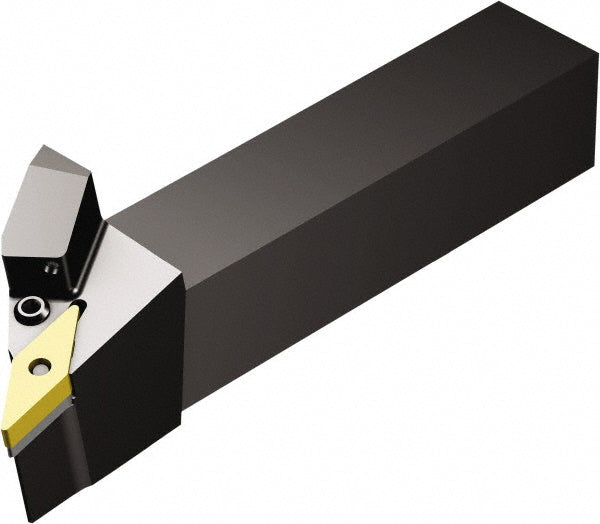

Indexable Turning & Profiling - Sandvik Coromant 6188564
MFR# 6188564Series T-Max® P
$455.44List $483.84
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 6188564 indexable turning & profiling. Series T-Max® P.
Specifications
Back of bar to cutting edge in6
Cutting tool applicationFacing
Hand of holderRight Hand
Head length1.7992
Insert compatibilityVNMG 332
Insert holding methodClamp; Lever
Insert inscribed circle in3/8
Insert width in3/8
Multi use toolYes
Overall length in6
RakeNegative
Rake angle-5
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder stylePVJNR
