Sandvik Coromant

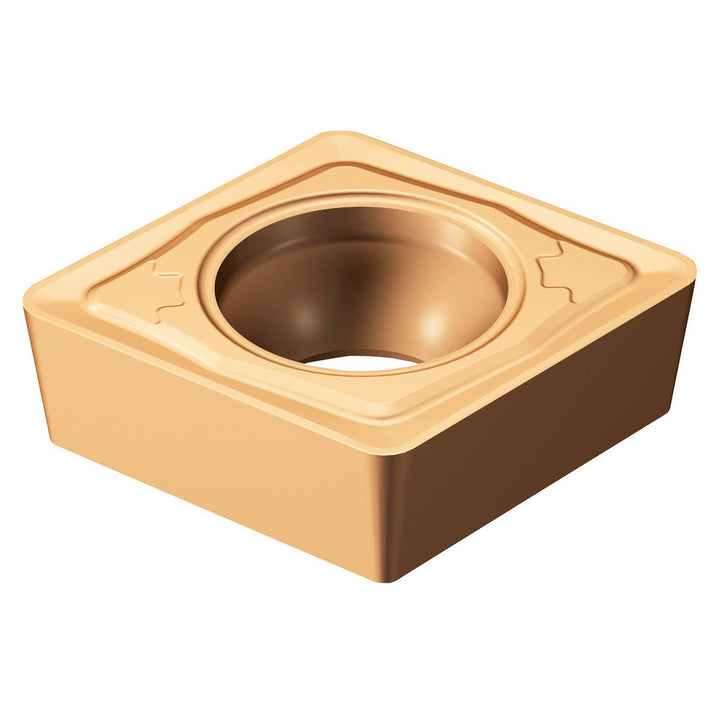

CCMT09T308SMC1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 6198179
MFR# 6198179ISO/ANSI# CCMT09T308SMC1115Series CoroTurn 107
$16.76List $21.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 6198179 is a CCMT09T308SMC1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for superalloy, titanium.
Specifications
Chip breakerSMC
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3807
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308SMC1115
Length range0.3000 - 0.4000
Manufacturers catalog number6198179
Manufacturer grade1115
Maximum depth of cut0.3492
Number of cutting edges2
Primary workpiece materialSuperalloy; Titanium
Relief angle7
Tolerance codeM
Wiper edgeNo
