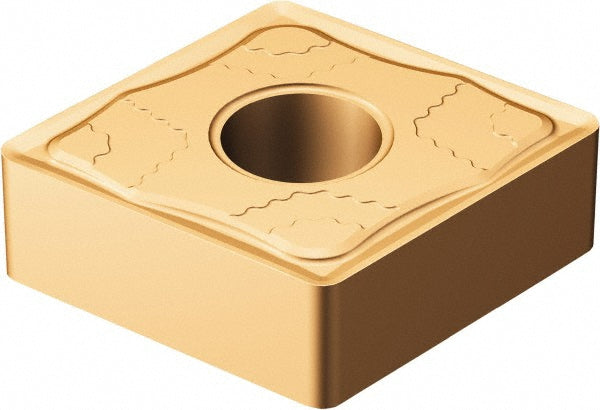

CNMG 12 04 08-SMC 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 6198215
MFR# 6198215ISO/ANSI# CNMG 12 04 08-SMC 1115Series T-Max P
$18.09List $23.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 6198215 is a CNMG 12 04 08-SMC 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for superalloy, titanium.
Specifications
Chip breakerSMC
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4762
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-SMC 1115
Length range0.4000 - 0.5000
Manufacturer grade1115
Number of cutting edges4
Primary workpiece materialSuperalloy; Titanium
Relief angle0
Tolerance codeM
Wiper edgeNo
