Sandvik Coromant
Carbide Insert, Grade S05F, TiCN - Sandvik Coromant 6199517
MFR# 6199517Series CoroCut 1-2
$40.96List $52.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeS05F
MaterialCarbide
CoatingTiCN
Description

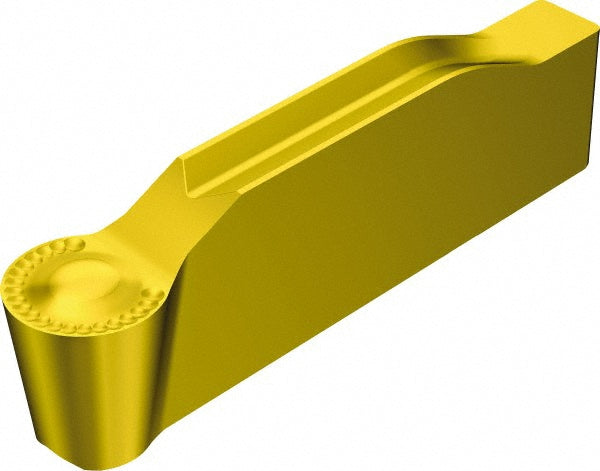

The Sandvik Coromant 6199517 is a carbide indexable insert, grade S05F, TiCN coated.
Specifications
Coating finishTiCN
Coating processCVD
Corner radius0.1181
Cutting width0.2362
Insert handNeutral
Insert materialCarbide
Insert size0600
Insert styleN123
Manufacturers catalog number6199517
Manufacturer gradeS05F
Maximum depth of cut0.1102
Maximum depth of cut range0.1000 to 0.1500
Rake angle7
