Sandvik Coromant
Indexable Grooving - Sandvik Coromant 6224915
MFR# 6224915Cat# QS-LF123E043-08BHPSeries CoroCut 1-2
$439.16List $466.56
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

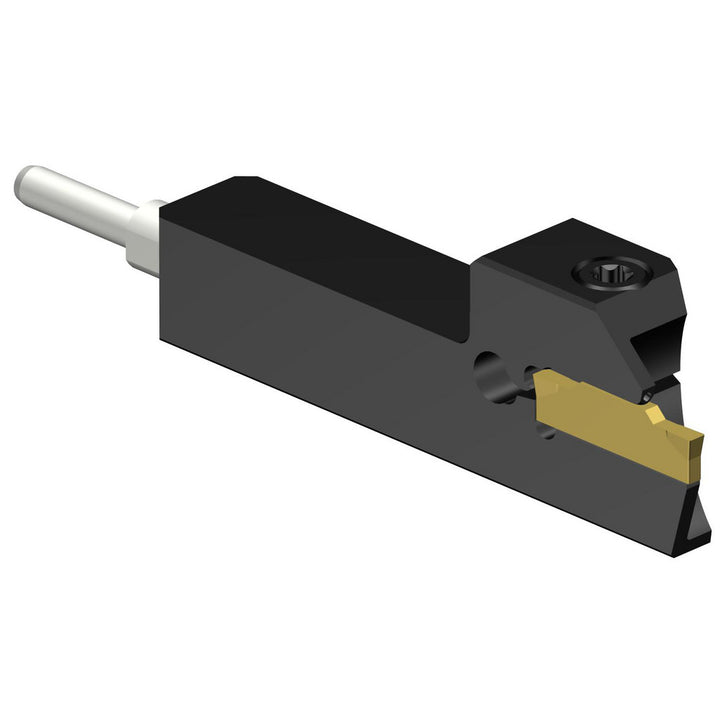

The Sandvik Coromant 6224915 indexable grooving. Series CoroCut 1-2.
Specifications
Back of bar to cutting edge2.7559
Compatible insert size codeN123E2
Coolant throughYes
Cutting tool applicationCut-Off; Grooving; Parting
Hand of holderLeft Hand
Head height0.5000
Head length0.5000
Insert compatibilityN123E2-0200-CM
Insert holding methodClamp
Internal or externalExternal
Manufacturers catalog numberQS-LF123E043-08BHP
Maximum depth of cut0.4300
Maximum groove width (mm)2.39
Maximum overhang in0.8267
Minimum groove width0.0728
Overall length2.7559
Shank height in1/2
Shank length1.9291
Shank width diameter in1/2
Toolholder styleQS-LF123..BHP
