Sandvik Coromant

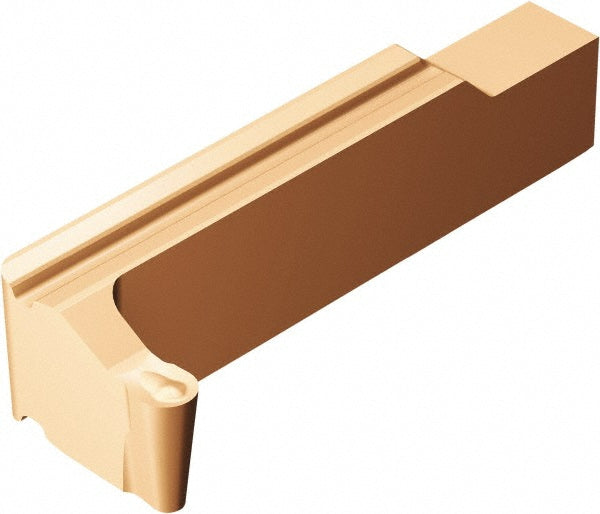

RG123L1-0200-RO 1115 Solid Carbide Insert, TiAlN - Sandvik Coromant 6285759
MFR# 6285759ISO/ANSI# RG123L1-0200-RO 1115Cat# RG123L1-0200-RO 1115Series CoroCut 1-2
$81.86List $104.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 6285759 is a RG123L1-0200-RO 1115 solid carbide indexable insert, TiAlN coated.
Specifications
Chip breakerRO
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutting height0.1713
Cutting width0.0787
Insert handRight Hand
Insert materialSolid Carbide
Insert seat sizeL
Insert sizeX1
Insert styleRG123..
Insert thickness0.1713
Iso codeRG123L1-0200-RO 1115
Manufacturers catalog numberRG123L1-0200-RO 1115
Maximum depth of cut0.2360
Maximum depth of cut range0.2000 to 0.3000
Minimum corner radius0.0394
Multi use toolYes
Overall length1.2050
Overall width (mm)2.00
RakePositive
