Sandvik Coromant

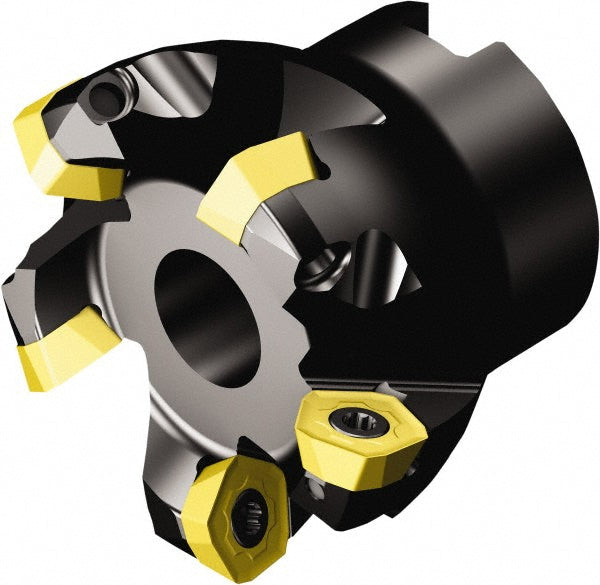

Indexable Milling Cutters - Sandvik Coromant 6289908
MFR# 6289908Series CoroMill 419
$778.45List $827.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Sandvik Coromant 6289908 indexable milling cutters. Series CoroMill 419.
Specifications
Arbor hole diameter in3/4
Compatible insert size code419R-1405
Complete insert compatibility419R-1405
Coolant throughYes
Cutter styleA419
Cutting directionRight Hand
Cutting edge length0.0787
Hub diameter in3/4
Insert holding methodScrew
Keyway width0.3209
Lead angle19
Maximum body diameter1.4213
Maximum cutting diameter1.4213
Maximum depth of cut0.0787
Number of cutter inserts4
Number of flutes4
Overall height in1-3/4
Pitch typeClose
RakePositive
Toolholder materialSteel
