Sandvik Coromant
Indexable Milling Cutters - Sandvik Coromant 6289911
MFR# 6289911Series CoroMill 419
$1,071.18List $1,138.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description

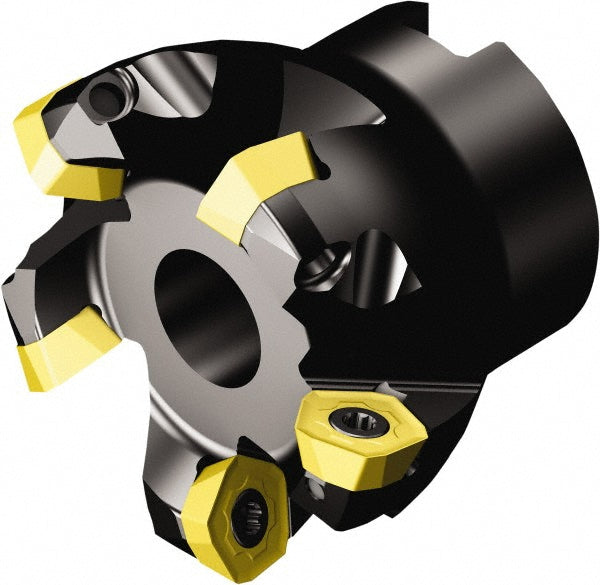

The Sandvik Coromant 6289911 indexable milling cutters. Series CoroMill 419.
Specifications
Arbor hole diameter in1
Compatible insert size code419R-1405
Complete insert compatibility419R-1405
Coolant throughYes
Cutter styleA419
Cutting directionRight Hand
Cutting edge length0.0787
Hub diameter in1
Insert holding methodClamp; Screw
Keyway width0.3839
Lead angle19
Maximum body diameter2.4213
Maximum cutting diameter2.4213
Maximum depth of cut0.0787
Number of cutter inserts5
Number of flutes5
Overall height1.9685
Pitch typeClose
RakePositive
Toolholder materialSteel
