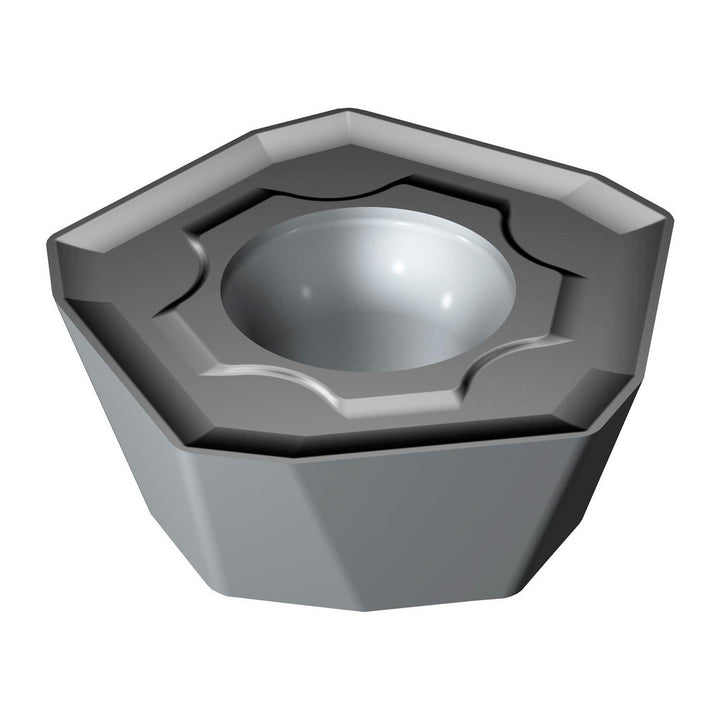

419R-1405E-MM 1040 Solid Carbide Insert, Grade 1040, TiAlN - Sandvik Coromant 6289918

Sandvik Coromant

419R-1405E-MM 1040 Solid Carbide Insert, Grade 1040, TiAlN - Sandvik Coromant 6289918

MFR# 6289918ISO/ANSI# 419R-1405E-MM 1040Cat# 419R-1405E-MM 1040Series 419

$32.13List $41.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/32
ShapePentagon
Grade1040
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 6289918 is a 419R-1405E-MM 1040 solid carbide indexable insert, grade 1040, TiAlN coated. Suited for steel, stainless steel.

Specifications

Ansi code419R-1405E-MM 1040
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility419
Cutting edge styleCorner Rounded
Hole diameter0.2165
Included angle degree108
Inscribed circle in17/32
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapePentagon
Insert size14
Insert size code1405
Insert style419
Iso code419R-1405E-MM 1040
Length in17/32
Length range0.5000 to 0.6000
Manufacturers catalog number419R-1405E-MM 1040
Manufacturer grade1040
Material applicationSteel; Stainless Steel
Material gradeM30
Maximum depth of cut0.0787
Multi use toolYes
Number of cutting edges5
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle5
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2154
Thickness range0.2000 to 0.2200
Width in17/32
