Sandvik Coromant

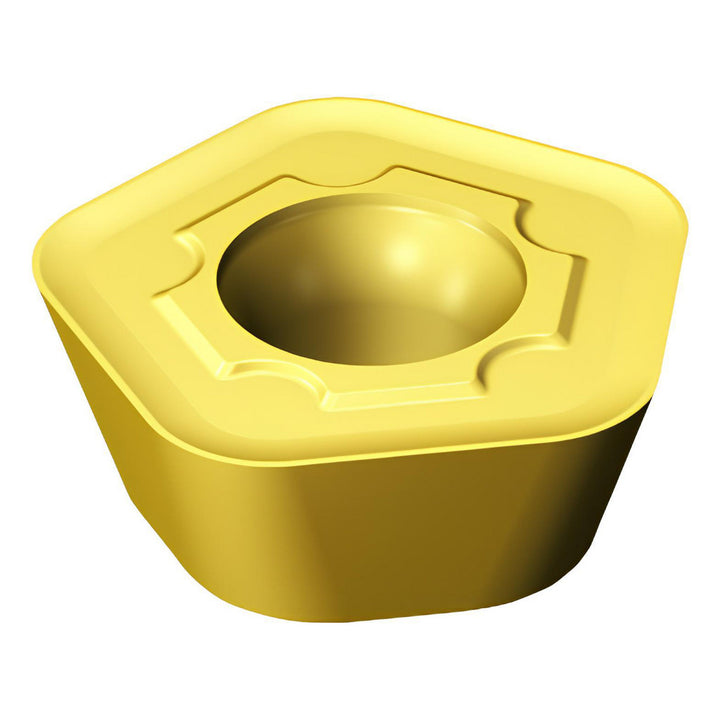

419N-140530E-SM 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 6289923
MFR# 6289923ISO/ANSI# 419N-140530E-SM 2040Cat# 419N-140530E-SM 2040Series 419
$32.93List $42.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC17/32
ShapePentagon
Grade2040
MaterialSolid Carbide
CoatingTiCrN
Description
The Sandvik Coromant 6289923 is a 419N-140530E-SM 2040 solid carbide indexable insert, grade 2040, TiCrN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi code419N-140530E-SM 2040
Chip breakerSM
Coating finishTiCrN
Coating processCVD
Corner radius0.1181
Cutter series compatibility419
Cutting edge styleCorner Rounded
Hole diameter0.2165
Included angle degree108
Inscribed circle in17/32
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapePentagon
Insert size14
Insert size code140530
Insert style419
Iso code419N-140530E-SM 2040
Length in17/32
Length range0.5000 to 0.6000
Manufacturers catalog number419N-140530E-SM 2040
Manufacturer grade2040
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP45; M40; S30
Maximum depth of cut0.0787
Multi use toolYes
Number of cutting edges5
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2154
Thickness range0.2000 to 0.2200
Width in17/32
