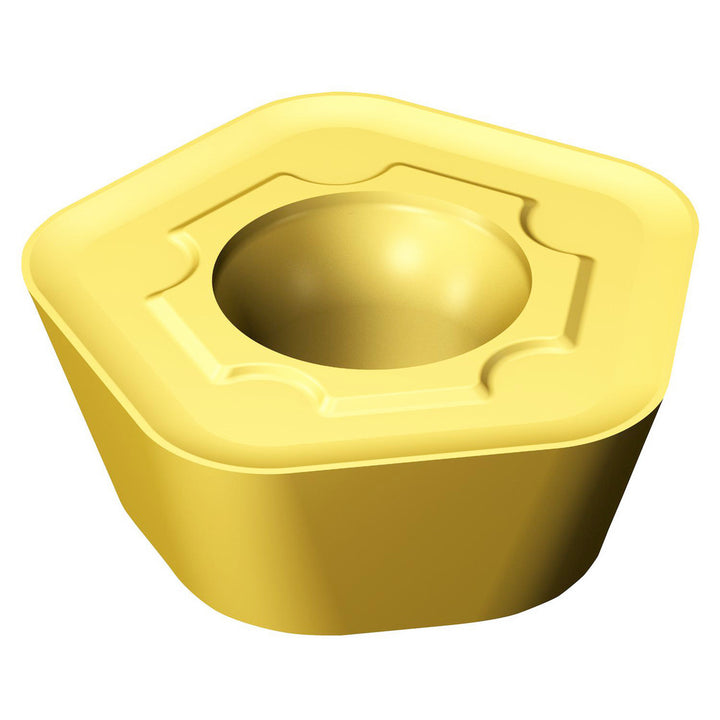

419N-140530E-SM S40T Solid Carbide Insert, Grade S40T, TiCrN - Sandvik Coromant 6289946

Sandvik Coromant

419N-140530E-SM S40T Solid Carbide Insert, Grade S40T, TiCrN - Sandvik Coromant 6289946

MFR# 6289946ISO/ANSI# 419N-140530E-SM S40TCat# 419N-140530E-SM S40TSeries 419

$32.13List $41.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/32
ShapePentagon
GradeS40T
MaterialSolid Carbide
CoatingTiCrN

Description

The Sandvik Coromant 6289946 is a 419N-140530E-SM S40T solid carbide indexable insert, grade S40T, TiCrN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi code419N-140530E-SM S40T
Chip breakerSM
Coating finishTiCrN
Coating processCVD
Corner radius0.1181
Cutter series compatibility419
Cutting edge styleCorner Rounded
Hole diameter0.2165
Included angle degree108
Inscribed circle in17/32
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapePentagon
Insert size14
Insert size code140530
Insert style419
Iso code419N-140530E-SM S40T
Length in17/32
Length range0.5000 to 0.6000
Manufacturers catalog number419N-140530E-SM S40T
Manufacturer gradeS40T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM40; S35
Maximum depth of cut0.0787
Multi use toolYes
Number of cutting edges5
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2154
Thickness range0.2000 to 0.2200
Width in17/32
