Sandvik Coromant
MB11G3000220R1025 Solid Carbide Insert, Grade 1025, TiAlN/TiN - Sandvik Coromant 6350728
MFR# 6350728ISO/ANSI# MB11G3000220R1025Series CoroCut MB
$55.16List $70.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1025
MaterialSolid Carbide
CoatingTiAlN/TiN
Description

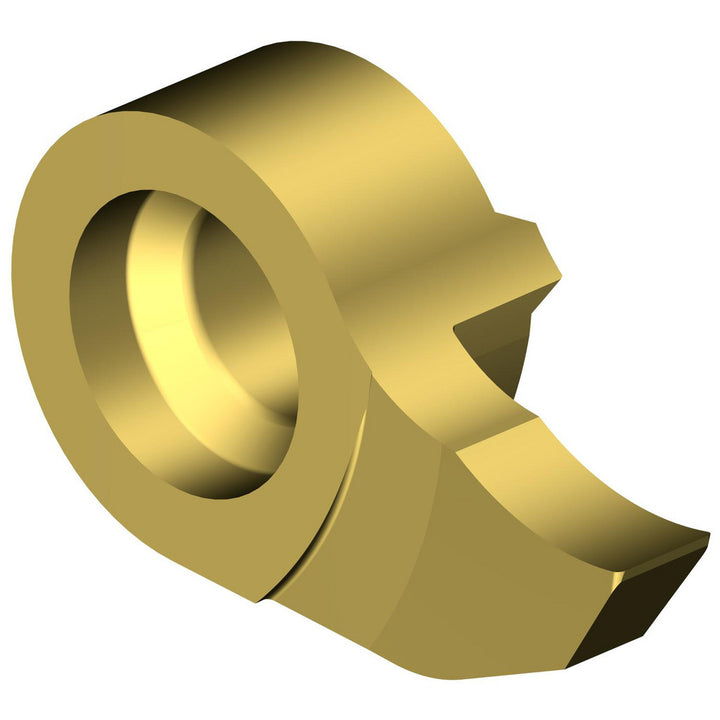

The Sandvik Coromant 6350728 is a MB11G3000220R1025 solid carbide indexable insert, grade 1025, TiAlN/TiN coated.
Specifications
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0787
Cutting width0.1181
Insert handRight Hand
Insert materialSolid Carbide
Insert size11
Insert styleMB
Iso codeMB11G3000220R1025
Lead angle90
Manufacturers catalog number6350728
Manufacturer grade1025
Maximum depth of cut0.3150
Maximum depth of cut range0.3000 to 1.0000
Multi use toolNo
Overall length0.2520
Rake angle2.00
