MB-11R300-15-18R 1025 Carbide Insert, Grade 1025, TiAlN - Sandvik Coromant 6350734

Sandvik Coromant

MB-11R300-15-18R 1025 Carbide Insert, Grade 1025, TiAlN - Sandvik Coromant 6350734

MFR# 6350734ISO/ANSI# MB-11R300-15-18R 1025Series CoroCut MB

$75.93List $95.69 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Grade1025
MaterialCarbide
CoatingTiAlN

Description

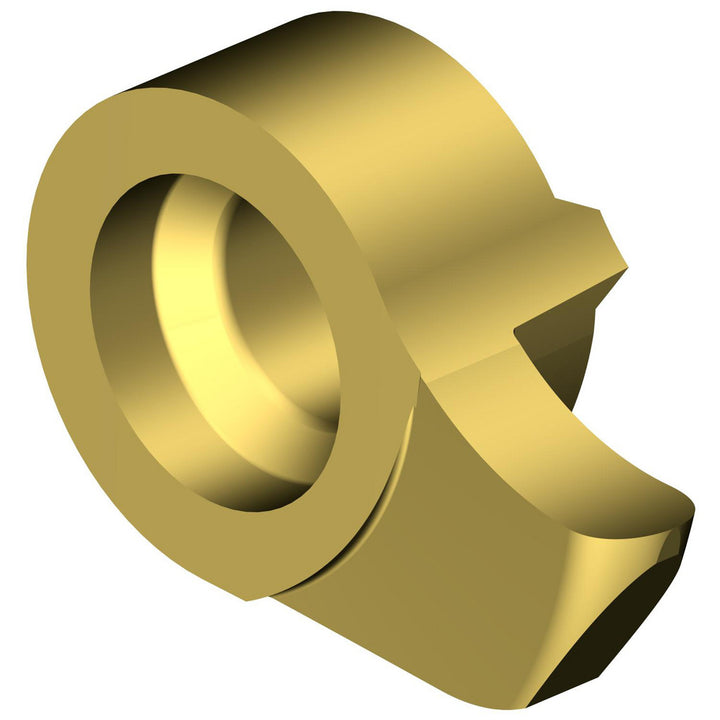

The Sandvik Coromant 6350734 is a MB-11R300-15-18R 1025 carbide indexable insert, grade 1025, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsProfiling; Turning
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Corner radius0.0591
Hole diameter0.4334
Included angle360
Inscribed circle0.1182
Insert handRight Hand
Insert height0.0000
Insert holding methodClamp
Insert length0.2955
Insert materialCarbide
Insert size code11R3
Insert styleMB
Iso codeMB-11R300-15-18R 1025
Manufacturer grade1025
Material gradeP25; M25; S25; K25
Maximum depth of cut0.0985
Msc manufacturer numberMB-11R300-15-18R 1025
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Relief angle2
ShapeRectangle
Side length0.2955
StandardsMB-11R300-15-18R 1025; MB-11R300-15-18R 1025
Thickness0.0000
Width0.1182
